TRS8 Pin On/Pin Grabber Coupler Tiltrotator For 10 Ton Mini Excavators

Overview

Cat® Tiltrotators for excavators provide 360-degree rotation and 40-degree tilting action side-to-side, allowing the machine to reach more work areas from a single position. The tiltrotator enables the operator to maneuver around posts, rocks, and other obstacles, as well as to reach along ditch edges more easily.

https://s7d2.scene7.com/is/image/Caterpillar/CM20190829-1b2e5-b1b0f

Provides optimal control of your work tools to provide greater flexibility.

https://s7d2.scene7.com/is/image/Caterpillar/CM20190308-25183-45265

A single point of entry for grease allows the entire unit to be greased quickly and easily.

https://s7d2.scene7.com/is/image/Caterpillar/CM20190829-88ea3-885c2

Upgraded software informs the operator of the attachments position via standard equipped monitoring sensors.

https://s7d2.scene7.com/is/image/Caterpillar/CM20190423-3426d-195f8

A maintenance free solution that more effectively distributes heat, providing better lubrication than grease.

https://s7d2.scene7.com/is/image/Caterpillar/CM20190308-25183-02210

Worm gear box with high rotation torque and self locking ability allows digging in all directions with full power, allowing the gear to accept the maximum machine forces and split the load through the entire TRS construction.

https://s7d2.scene7.com/is/image/Caterpillar/CM20190308-25183-46152

Valves sustain holding pressures and prevent cylinders movement under load constraints required by directives.

https://s7d2.scene7.com/is/image/Caterpillar/CM20190308-25183-21663

The visual verification indicator allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.

https://s7d2.scene7.com/is/image/Caterpillar/CM20200526-7750c-e97a1

LCS incorporates an electronic position sensor integrated into the quick coupler hydraulic cylinder. This sensor provides precise and reliable input to an electronic processor mounted inside the quick coupler. This microprocessor provides digital communication to the Next Generation MHE machine Electronic Control Module (ECM) by way of an electrical harness. This data is then displayed on the operators display screen, and will provide audible indications when that locking status changes.

Machine Class: 10 Ton Mini Excavators

Weight: 683.4lb

Interface Options: Top-Bottom: Pin On (Pin Grabber), Pin Grabber

Overall Height: 41.1in

Length: 25.6in

Overall Width: 26.7in

Rotation Speed: 7 Seconds per 1 Full Rotation

Tilt Angle Range +/-: 40 degrees left/right

Maximum Bucket Capacity: 17.7ft³

Maximum Bucket Width: 59.1in

Optimal Hydraulic Flow: 45-75 L/min (12-20 gpm)

Maximum Operating Pressure: 3625.9psi

Required Hydraulics: 1st Auxiliary

Tilting Torque: 19545lb/ft

Turning Torque: 4867.9lb/ft

Compatibility: Only compatible with the following Mini Excavator model serial number prefixes: 307.5 (GW7 1 & up) | 308 (GG8 1 & up) | 308 (GW8 1 & up) | 308.5 (GZ8 1 & up) | 309 (GG9 1 & up) | 309 (GW9 1 & up) | 310 (GWT 1 & up)

5 Year Platinum Extended Service Coverage on C32 Products

5 Year Platinum Extended Service Coverage on C32 Products

Hydraulic Hose Rebuild

Hydraulic Hose Rebuild

5 Year Platinum Extended Service Coverage on C32 Products

5 Year Platinum Extended Service Coverage on C32 Products

Hydraulic Hose Rebuild

Hydraulic Hose Rebuild

TRS8 Pin On/Pin Grabber Coupler Tiltrotator For 10 Ton Mini Excavators

Overview

Studio Shot

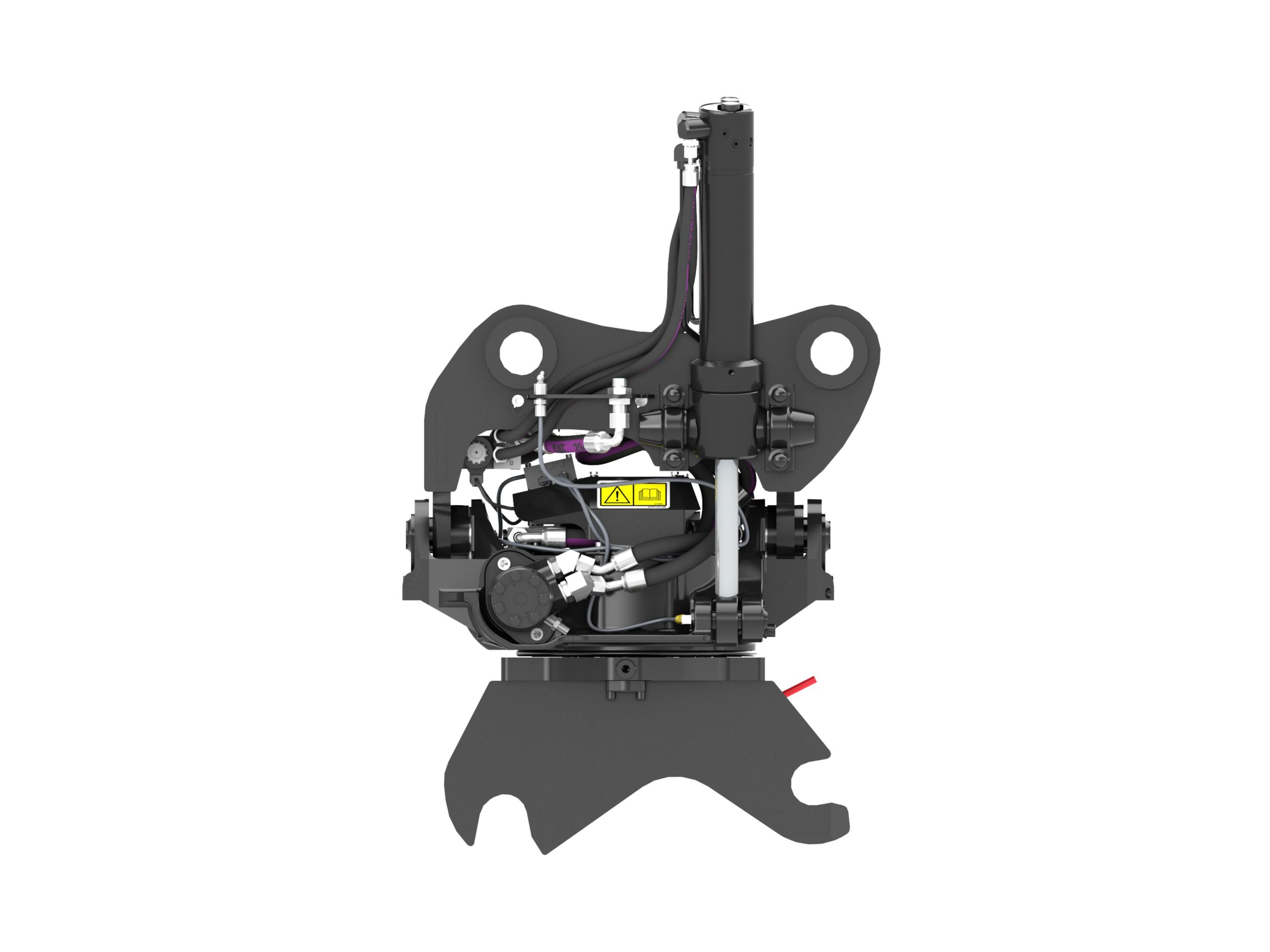

Front View

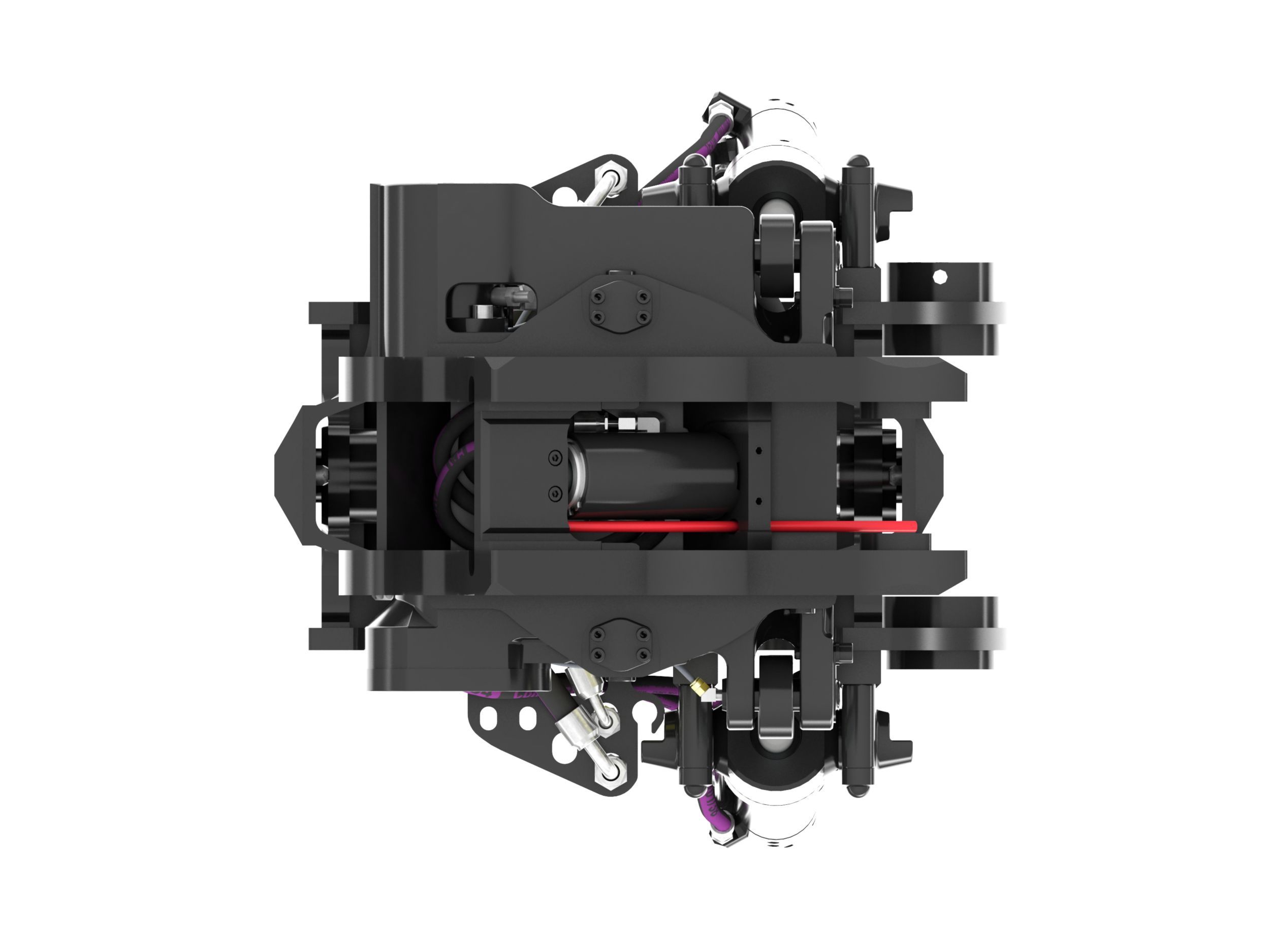

Top View

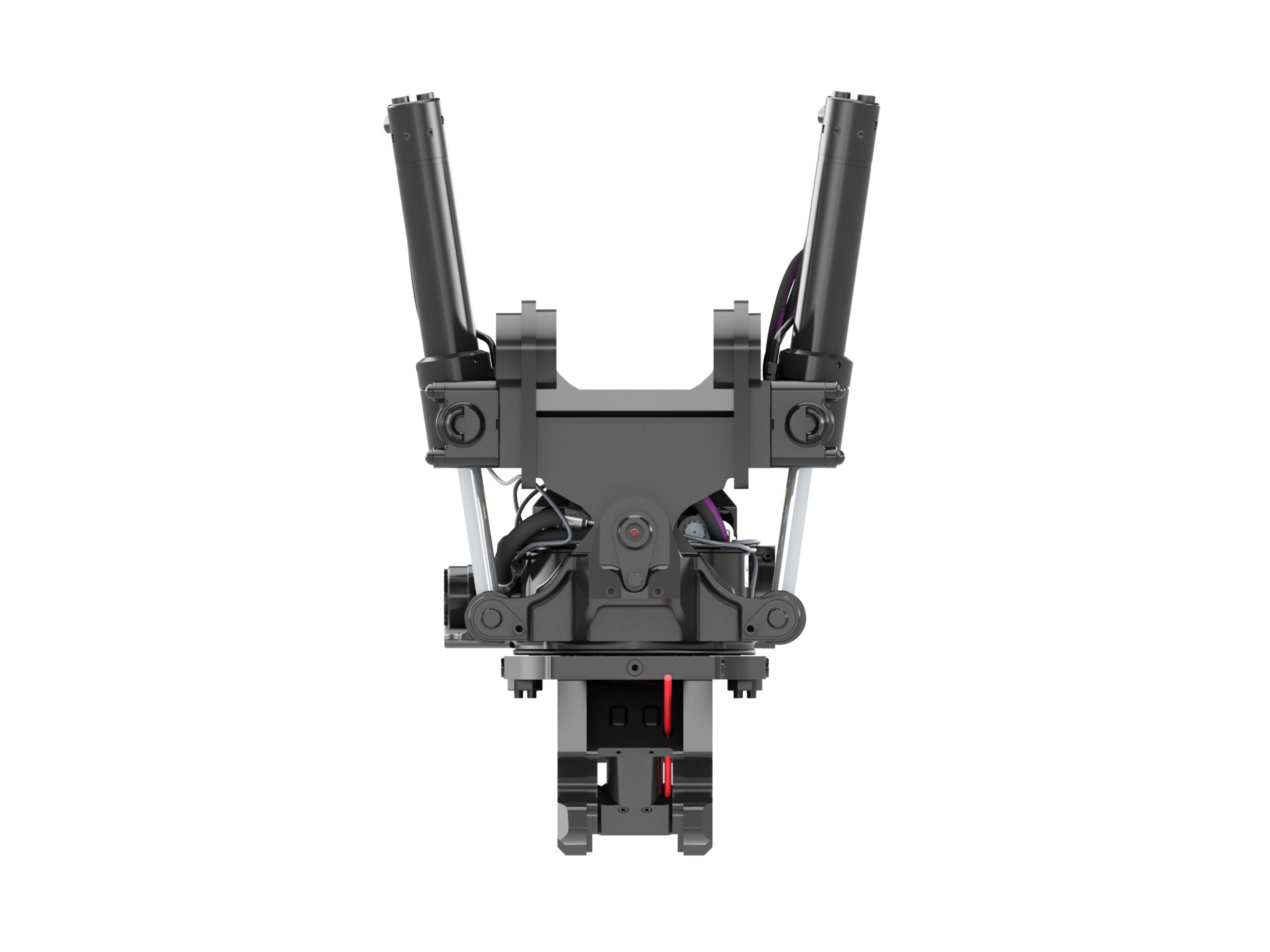

Left View

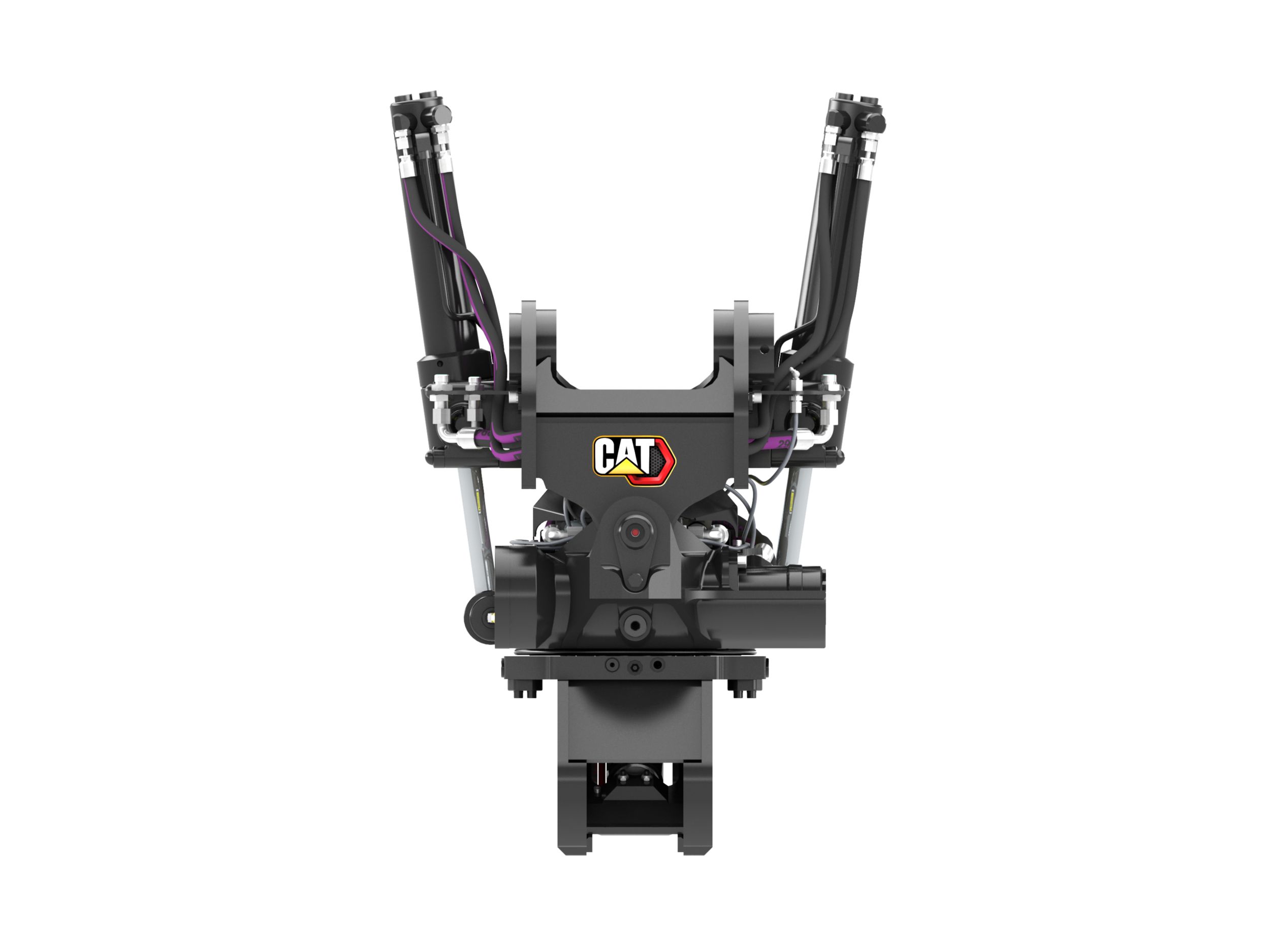

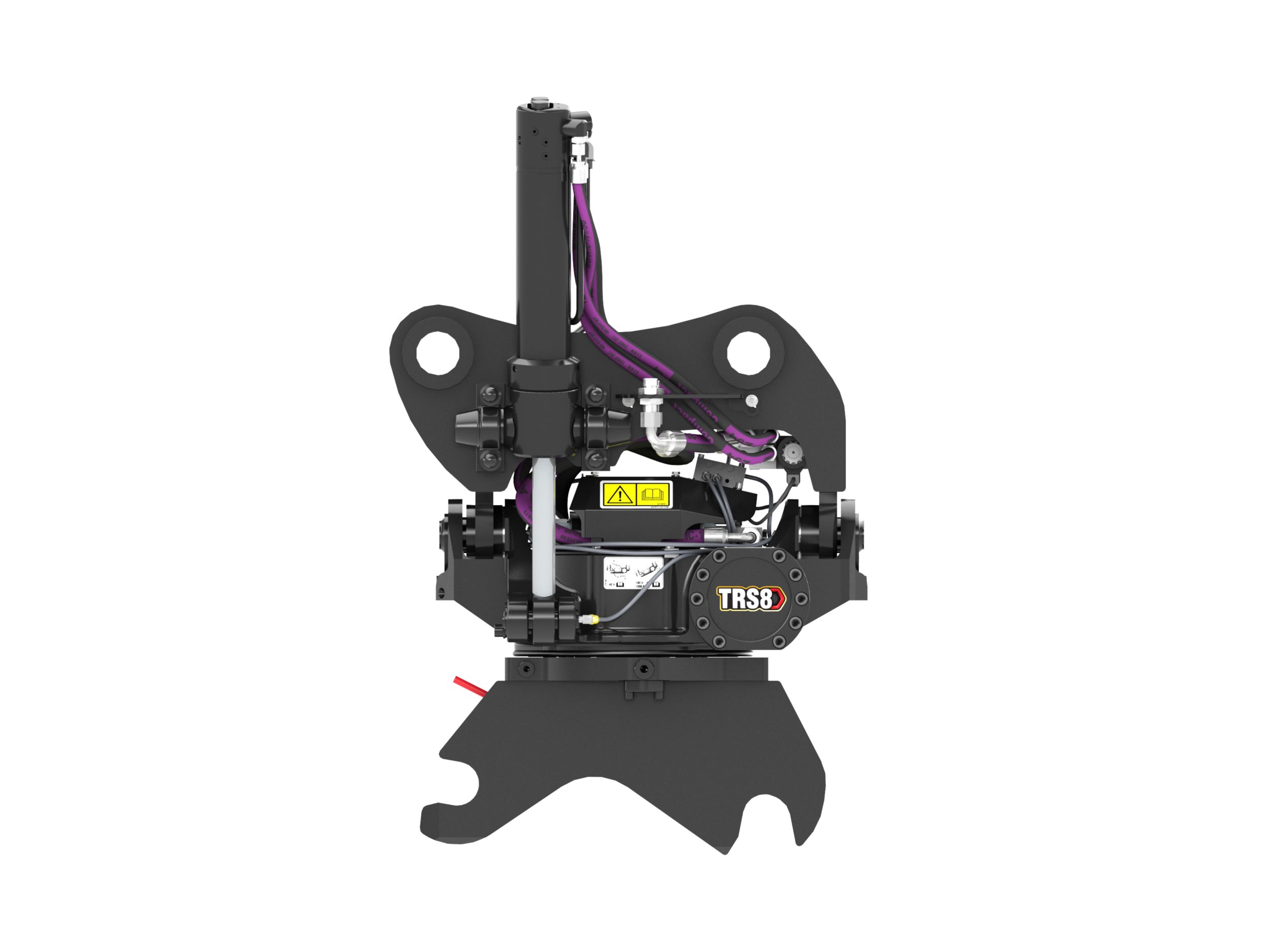

Rear View

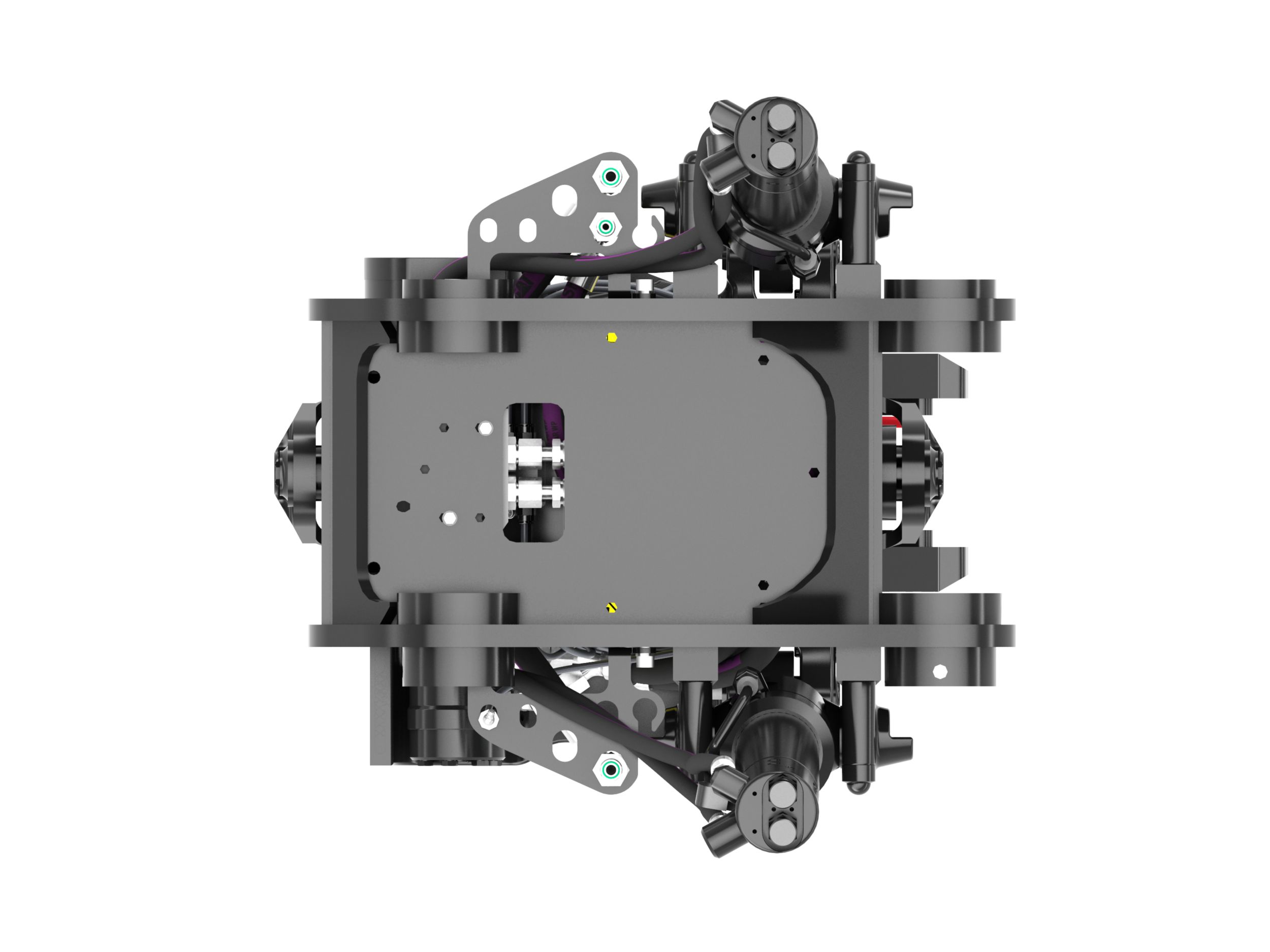

Bottom View
