AP600F Paver

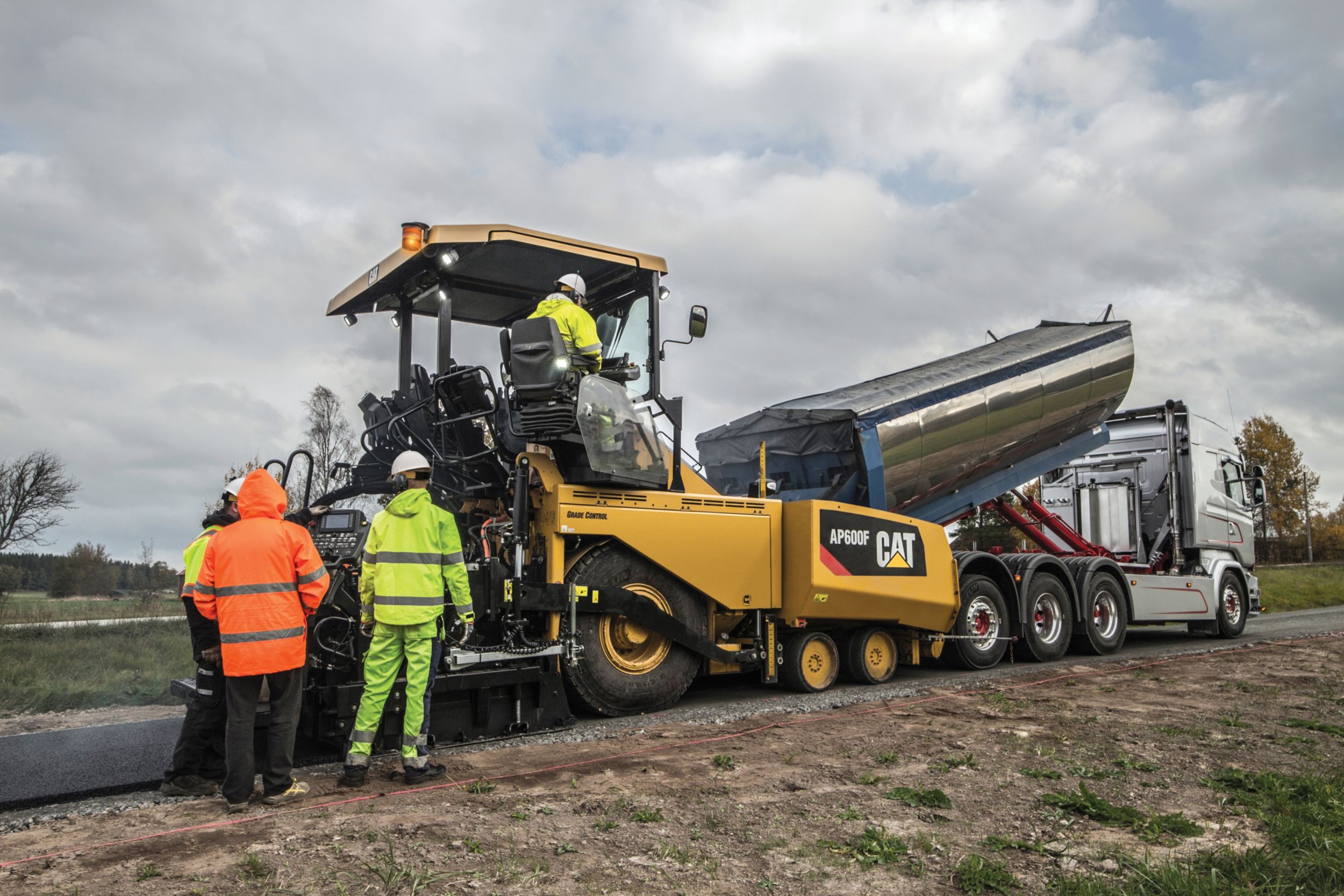

AP600F Wheel Paver

Overview

The AP600F is a mid to high production wheel paver that offers versatility for highways, rural roads, streets and other mid-sized projects.

Download Product Brochure Print
Fuel Efficient and Quiet
Cat C4.4 Engine The C4.4 engine provides 129 kW (173 hp) at 2200 rpm and meets U.S. EPA Tier 4 Final and EU Stage IV emission standards.
Quick Starter
Quiet Heating Quiet heat mode operates at an engine speed of 1300 rpm and provides heating in under 15 minutes.
More Control
Better Visibility, Exceptional Comfort The dual independent operating stations can extend beyond the frame for good all-around visibility. The low profile, front-mounted cooling system improves forward viewing and the redesigned auger assembly optimizes visibility to material height in front of the screed. The heated seat option, multipl...
Water Resistant Displays
Single Touch Operation Single touch features for the auto-fill feeder system, feeder system activation, and hopper control, allow operators to concentrate on truck exchanges and other duties for improved efficiency.
More Efficient Delivery
Auto-Fill Feeder System The auto-fill system simplifies starts by alternating the conveyors and augers until the mix height reaches the sensor point.
Wheel Undercarriage
Power Turning System A postion sensor located in the left steering cylinder helps maintain consistent travel speeds when making turns by adjusting the drive speed of the propel motors according to the steering angle of the front wheels. This unique system leads to better mat quality and less wear on the drive system.
SE-Series Screeds
Screed Heat Technology Exclusive zone monitoring allows heating to continue in the event of a temperature sensor failure. The system also monitors heating elements for failure conditions, eliminating unnecessary replacement.
Cat Grade Control
Easy Operation F-Series pavers allow Cat Grade Control to be operated from any of the two tractor or two screed consoles. Split screen mode can be setup to monitor each side of the screed allowing a single person to monitor operation.
Fuel Efficient and Quiet
Cat C4.4 Engine The C4.4 engine provides 129 kW (173 hp) at 2200 rpm and meets U.S. EPA Tier 4 Final and EU Stage IV emission standards.
Eco-mode Eco-mode utilizes an engine speed of 1650 rpm and reduces fuel burn by up to 5% over Cat E-series pavers while also lowering sound levels even more.
Automatic Engine Speed Control When automatic engine speed control is activated, the engine speed is reduced to an idle speed of 1000 rpm when the propel lever is moved to neutral, or to 1300 rpm when screed heat is active.
Advanced Eco-mode Eco-mode and automatic engine speed control when activated together modify the engine rpm based on load factors. When activated the engine will operate at 1650 rpm when paving. If the upper power threshold is exceeded, the engine speed will increase to 2200 rpm and remain there until the demand drops below the threshold and remains there for 30 seconds, ensuring reliable performance.
Quick Starter
Quiet Heating Quiet heat mode operates at an engine speed of 1300 rpm and provides heating in under 15 minutes.
Quick Heating Quick heating mode provides a heat-up time in under 35 minutes when equipped with the wide-width paving package.
Temperature Ranges Three preset heating options provide a wide range of temperatures for various mix designs; Low is 110 degrees C or 230 degrees F, medium is 130 degrees C or 266 degrees F, high is 160 degrees C or 320 degrees F.
More Control
Better Visibility, Exceptional Comfort The dual independent operating stations can extend beyond the frame for good all-around visibility. The low profile, front-mounted cooling system improves forward viewing and the redesigned auger assembly optimizes visibility to material height in front of the screed. The heated seat option, multiple seat adjustments, and tilting consoles conform to the operator to provide day-long comfort. Also, the top-mounted cooling system directs fumes, hot air, and fan noise away from the crew for a cooler and quieter working environment.
Fumes Management System The exclusive ventilation system draws fumes from the conveyor tunnel as well as the auger chamber and redirects them away from the operator for a more comfortable working environment.
Water Resistant Displays
Single Touch Operation Single touch features for the auto-fill feeder system, feeder system activation, and hopper control, allow operators to concentrate on truck exchanges and other duties for improved efficiency.
Simple Technology Technology helps operators perform. Intuitive symbols and large graphics simplify operation., while the interactive LCD display with touchscreen access to generator activation, screed temperature control, and mix height adjustment, increase efficiency.
More Efficient Delivery
Auto-Fill Feeder System The auto-fill system simplifies starts by alternating the conveyors and augers until the mix height reaches the sensor point.
Single Touch Feeder System A single switch automatically activates the entire feeder system for better efficiency.
One Touch Hopper Control The hopper wings and hydraulic apron can be folded with a single touch and release. The system can be tailored to activate left or right wings, or the front hydraulic apron independently or together.
Cleanout and Warm-Up Mode This feature activates the augers, conveyors, and tamper-bar (if equipped) at a reduced speed, allowing the application of release agents to prevent material build-up.
Mix Height Adjustment Mix height adjustment in front of the screed can be modified from the tractor LCD display for increased versatility when needed.
Hydraulic Mainframe Extensions The optional 457 mm (18") hydraulic mainframe extensions attach to the auger assembly and provide smooth material flow out to the extenders. They retract with the screed extensions when reducing paving widths.
Multiple Feed Sensor Options The feeder system can be tailored to automatically operate with 0, 2, or 4 feed sensors. When paving with 0 sensors due to a failure, simply set the feeder system to automatic and adjust the mix height setting, no need to cycle the manual switch as previous models required.
Easier Service Hardware-free bed plates simplify replacement and bottom side mounting hardware for the chain guards eliminates bolt wear and material build-up for easier replacement.
Wheel Undercarriage
Power Turning System A postion sensor located in the left steering cylinder helps maintain consistent travel speeds when making turns by adjusting the drive speed of the propel motors according to the steering angle of the front wheels. This unique system leads to better mat quality and less wear on the drive system.
Four-Wheel Drive Provides power to the front bogie wheels for additional traction. A dedicated pump delivers a 50% increase in torque over previous models.
All-Wheel Drive Provides power to the front and rear bogie wheels. It delivers a 200 % increase in pull force over the previous models.
SE-Series Screeds
Screed Heat Technology Exclusive zone monitoring allows heating to continue in the event of a temperature sensor failure. The system also monitors heating elements for failure conditions, eliminating unnecessary replacement.
Easy Adjustment Feeder system ratio adjustment capability from the screed provides versatility. Standard hydraulic adjustment for extender height, slope, and crown, allows for on-the-go adjustment at standard and maximum paving widths.
Two-Speed Proportional Extender Control Exclusive two-speed proportional extender control provides slower speed for precise control around obstacles and quick reaction when extending paving widths.
Better Efficiency The heating elements slide out for easy replacement, no need to remove the screed plates. Machined screed frames simplify plate replacement and leveling.
Tamper Bar Screed Option Tamper bar equipped screeds increase density as it tucks material under the screed plates. Three tamper stroke settings of 2, 4, and 7 mm as well as the variable tamper speed of 700 to 1800 rpm provide versatility.
Wide-Width Paving Packages Exclusive power controls simplify adjustment across the entire paving width for better mat texture. An innovative design utilizes extender slope to attach wide-width paving packages, eliminating the need for additional lifting devices.
Cat Grade Control
Easy Operation F-Series pavers allow Cat Grade Control to be operated from any of the two tractor or two screed consoles. Split screen mode can be setup to monitor each side of the screed allowing a single person to monitor operation.
Precise Control More accurate control, maximizes mix utilization, saves money. True averaging with sonic sensors that utilize 5 transducers, 2 readings are discarded and 3 averaged. A 10-point Auto-Calibration eliminates over/under adjustment from a single calibration point. Cross-coupling, slope and elevation are maintained with height adjustments. The true 9 m (30 ft) sonic averaging beam modifies tow point movement by 1/3 of total grade deviation.
Highly Reliable Water-resistant displays, factory installed components, and consistent routing deliver performance. Sealed components withstand heat, moisture, and vibration, and the built-in temperature sensors provide better reliability than bail-type sensors.
1 of 8 items

Weights

Operating Weight - SE50 V Screed only
7239lb
Operating Weight - SE50 VT Screed only
7363psi
Operating Weight - SE60 V Screed only
7495lb
Shipping Weight - Paver Only
29891lb
Operating Weight - Paver Only
30522lb

Operating Specifications

Standard Paving Range - SE60 V
3.0 - 6.0 m (9' 10" - 19' 6")
Hopper Capacity
250ft³
Maximum Paving Width - SE50 VT
26.3ft
Maximum Paving Width - SE50 V
21.3ft
Maximum Paving Width - SE60 V
25ft
Maximum Throughput Capacity
1433tonnes/hr
Maximum Paving Speed - With Tamper Bar Screed
82ft/min
Inside Turn Radius
4.5ft
Maximum Paving Speed - With Vibratory Screed
250ft/min
Maximum Travel Speed
9mile/h
Standard Paving Range - SE50 V, SE50 VT
2.55 - 5.0 m (8' 4" - 16' 4")

Service Refill Capacities

DEF Tank
5gal (US)
Fuel Tank Capacity
73gal (US)

Engine

Engine Model
Cat C4.4 with ACERT
Gross Power
173HP

Standard/Optional Features

Standard Equipment:

Optional Equipment:

  • Options
    • Air-ride Seat with Heat
    • All-Wheel Drive
    • Auger and Mainframe Extensions
    • Auxiliary Power Panel
    • Ballast
    • Cat Grade Control
    • Decelerator Pedals
    • Ecological Washdown System
    • Feed Sensor (Sonic or Mechanical)
    • Front Wheel Assist
    • Hardtop Canopy
    • HID Lights
    • Leveling Devices
    • Lights (Working or Roading)
    • Mainframe Extensions (Power or Manual)
    • Power Folding Front Apron
    • Product Link
    • Oscillating Push Rollers
    • Steering Guide
    • Tow Point Indicators (Upper)
    • Truck Hitch
    • Generator
    • Umbrella
    • Uptime Kit
    • Ventilation System
    • Warning Beacon
    • Wide-width Paving Packages
    • Windshield w/Hardtop Canopy
  • Grade References
    • Non-Contacting Sonic Grade Sensor
    • Contacting Grade Sensor
    • Outboard Leveler, 9.15 m (30') and 12.2 m (40')
    • Inboard Leveler
    • Mobile Stringline
    • Fore ‘N Aft Leveler
    • Sonic Averaging Beam
    • Rigid Ski, 9.15 m (30') and 12.2 m (40')
  • Screed Choices
    • SE50 V Vibratory Screed
    • SE50 VT Tamper Bar Screed
    • SE60 V Vibratory Screed
